Representing Spectra’s range of compact industrial PCs, the Spectra PowerBox 54F stands out as a prime example. Typical areas of application include machine control with AI support, process optimization directly at the plant, and edge data preprocessing. The Spectra PowerBox 54F features a robust and attractive industrial design.
It supports 14th, 13th, and 12th generation Intel^® Core™ i-series processors and, with a scalable, upgradeable GPU expansion box, offers numerous options for system expansion.
Users can choose between two or four PCIe expansion slots. Thanks to a wide-range voltage input from 9 to 48 volts with integrated voltage monitoring, the PowerBox 54F is highly versatile. Various mounting methods – tower, desktop, 19-inch rack, flat, and wall mounting – ensure maximum flexibility for integration into different environments. The profile is rounded off by certification according to MIL-STD-810H and EN 50121-3-2, guaranteeing high resilience and reliability in industrial use. Technical advantages at a glance

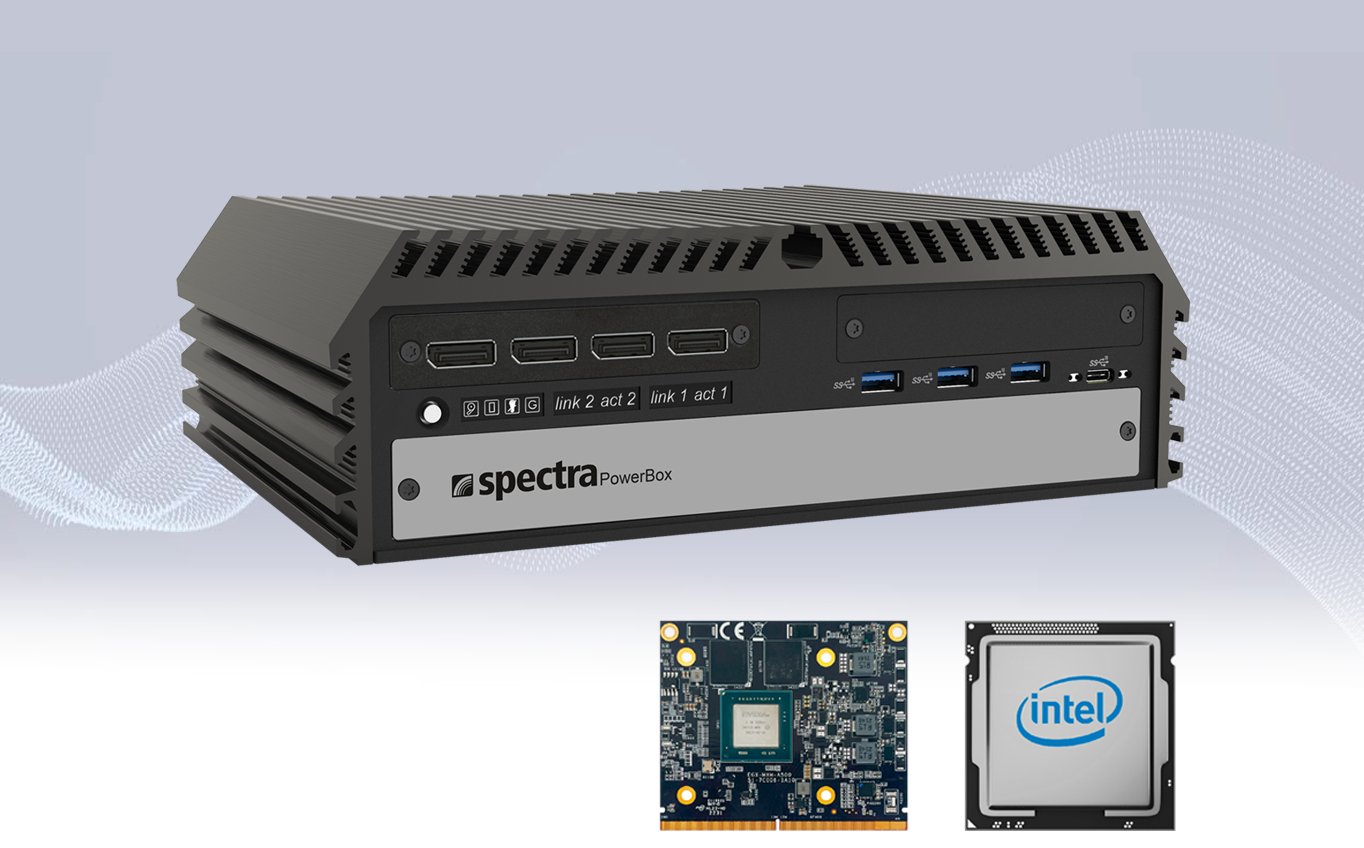

PowerBox 530 Performance 5 MXM

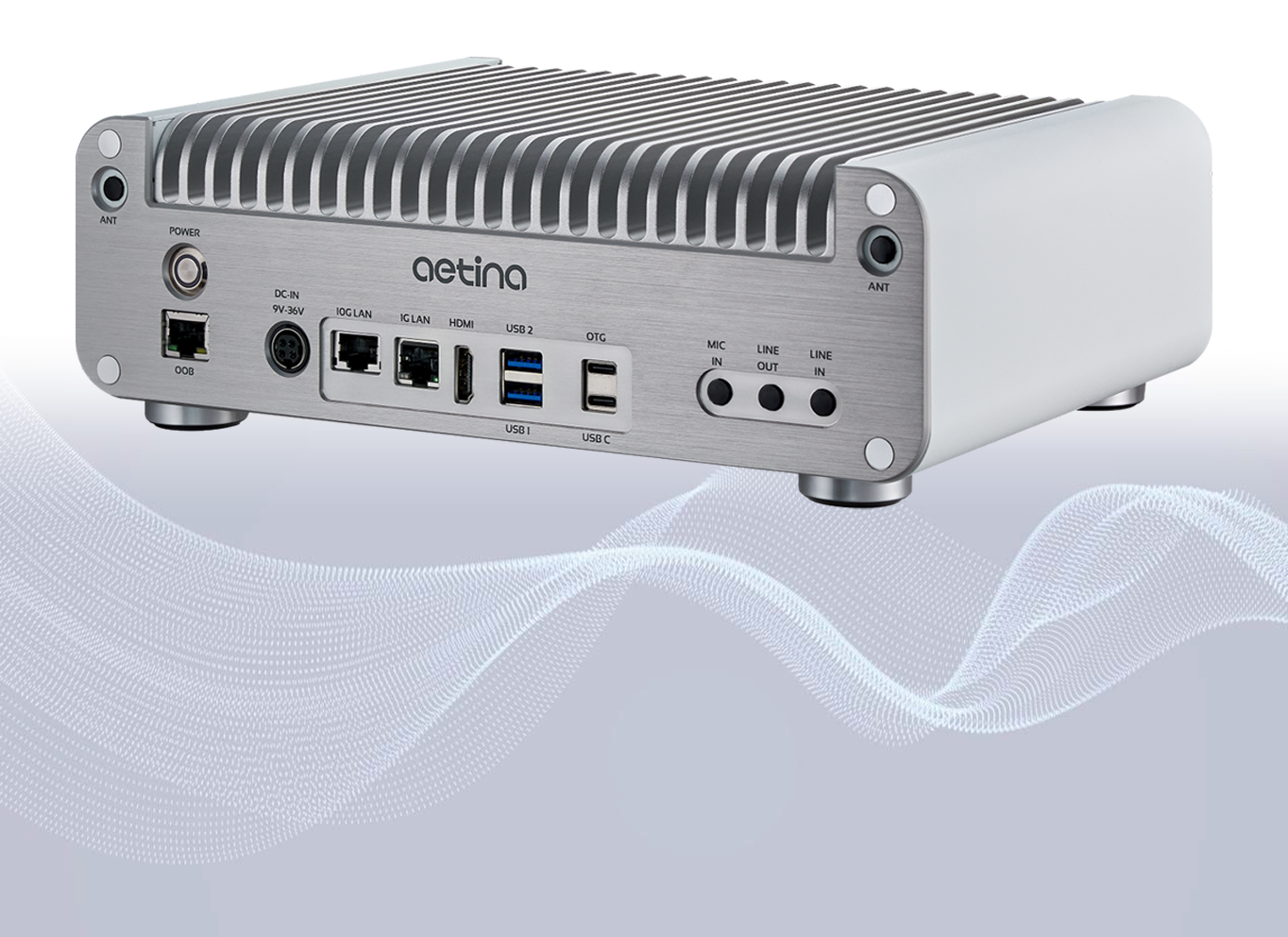

Jetson systems, such as the AIE-PX23/1-A1 model, are specifically designed for demanding edge AI applications. They are suitable for mobile robotics, predictive maintenance, decentralized sensor data analysis, and autonomous transport systems (AGVs). The system supports the powerful NVIDIA Jetson AGX Orin modules with 32 GB or 64 GB of RAM, providing a solid foundation for compute-intensive AI inference tasks. Features include a Gigabit Ethernet and a 10-Gigabit Ethernet LAN port, various expansion slots (B-Key, E-Key, M-Key), and a wide input voltage range from 9 to 36 V DC. The fanless design enables reliable operation in a temperature range from -25 °C to +55 °C. With these characteristics, the fanless edge AI system AIE-PX23/1-A1 is optimally suited for use in industrial and mobile applications where high computing power, flexibility, and robustness are required.
Technical advantages at a glance

AIE-PX23/1-A1
