Compact Power
for Edge AI and
Machine Vision

Maximum Performance
in a Compact Design

Thanks to Intel’s 3 nm architecture, the Nuvo-11531 series delivers up to 36 TOPS of AI performance while consuming up to 20 percent less energy compared to the previous generation. With integrated NPU and GPU, it accelerates AI-based image processing and automation tasks directly at the data source.
With dimensions of just 212 x 165 x 63 mm, the series is perfectly suited for space-constrained installations such as robotic arms, AMRs, machine vision systems, or roadside cabinets.

Flexible Interfaces and Expansion

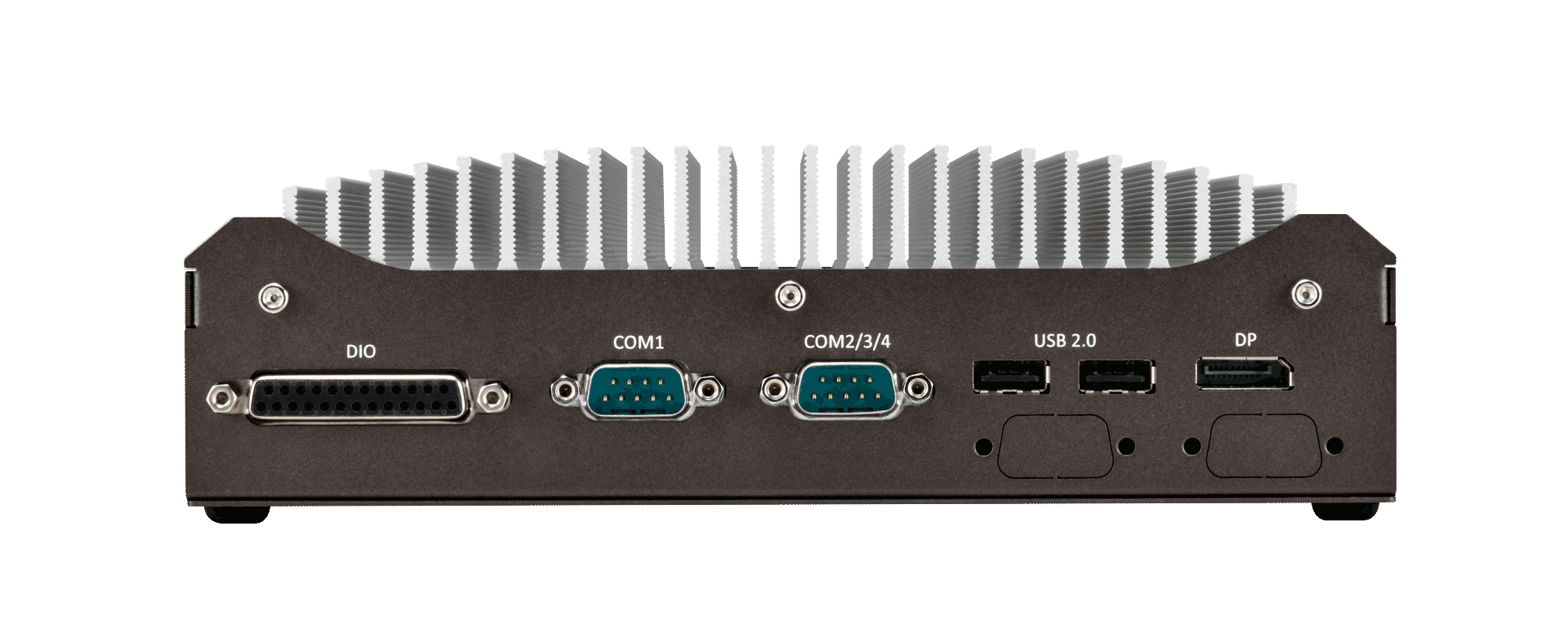

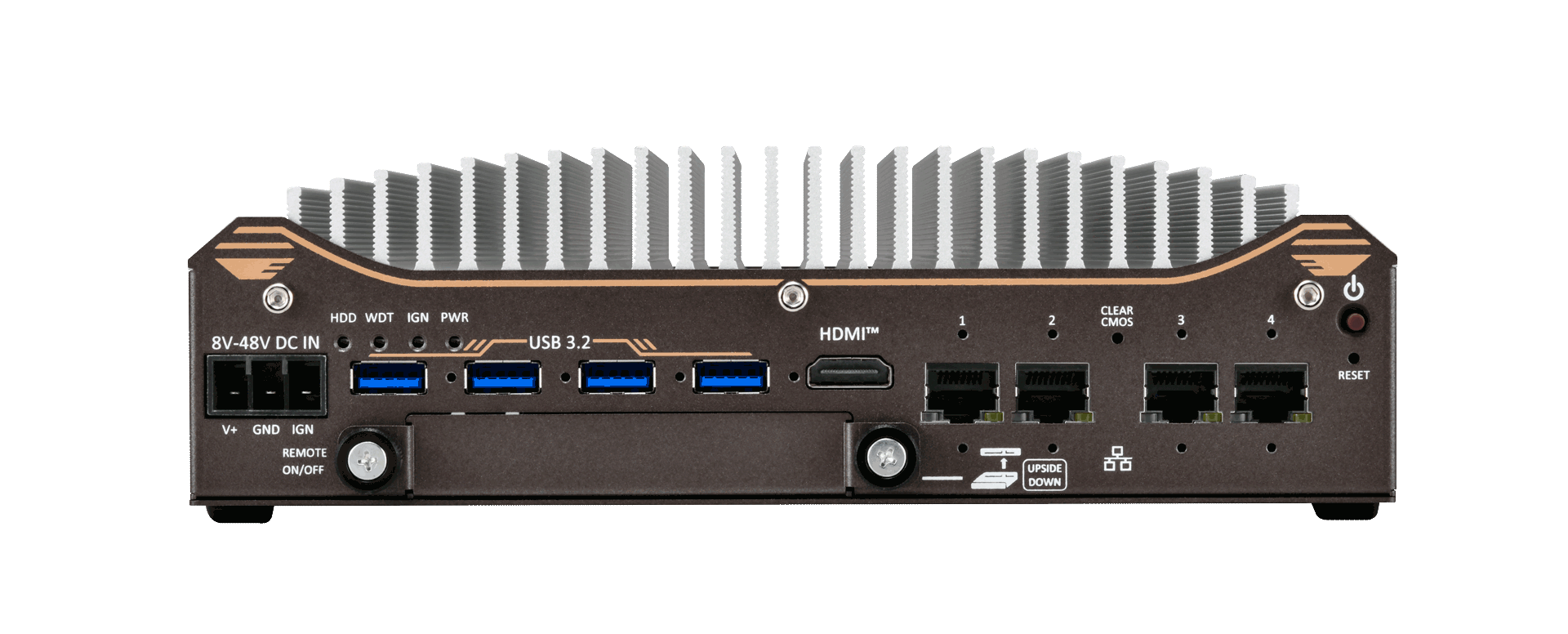

The Nuvo-11531 series is designed for a wide range of industrial applications. It offers 4 x 2.5 GbE ports (optionally with PoE+) for cameras, sensors, or LiDAR, 4 x USB 3.2 Gen1 ports with screw-locks for robust peripheral connectivity, an M.2 Gen4 NVMe slot as well as a 2.5-inch SSD tray for flexible storage access, 2 x mPCIe and an M.2 E-Key slot for expansions such as 5G/4G, CAN bus, or Wi-Fi, as well as 2 x COM ports and isolated DIOs for industrial connectivity. For particularly demanding scenarios, the Nuvo-11588 variant additionally provides a SlimSAS PCIe Gen4 x8 connector to support external NVMe/U.2 storage, industrial PCIe cameras, or GPUs.

Rugged and Reliable
for 24/7 Operation

The fully fanless design supports an operating temperature range from -25 °C to +60 °C and a wide DC input range of 8 to 48 V. An optional ignition power control is available for mobile applications. In addition, the series has been tested according to MIL-STD-810H standards for shock and vibration resistance, making it an excellent fit for smart factories, autonomous logistics solutions, robotics, and smart city infrastructures.
