Expansion of the HMI‑product family

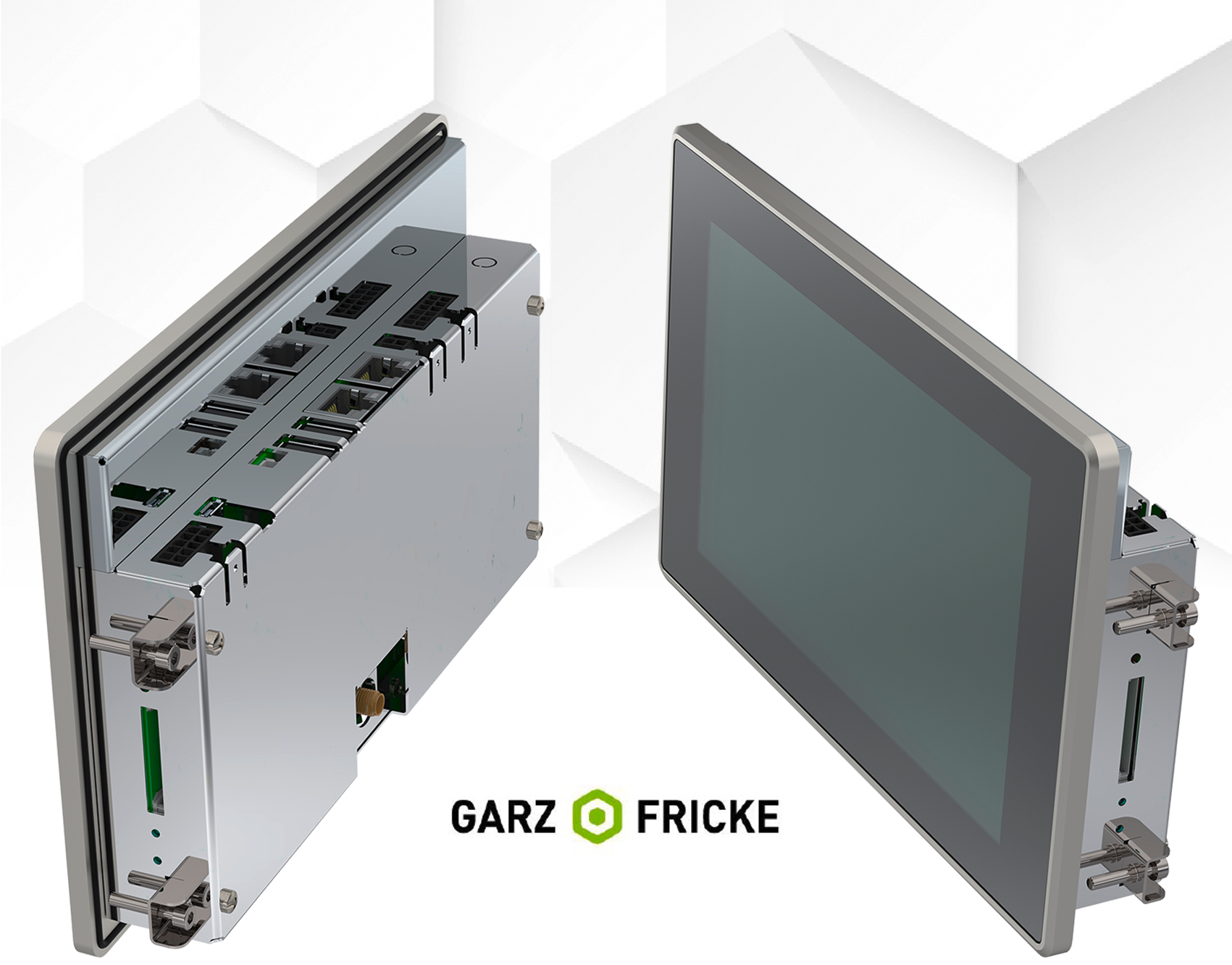

The Panel Mount HMI TANARO 7.0 BX PCT is designed for applications with high performance requirements

Garz & Fricke introduces the TANARO 7.0 BX PCT, the latest evolution of its existing family of Human Machine Interfaces (HMIs). The TANARO 7.0 BX PCT is the first HMI based on Garz & Fricke's new TANARO board.
The fully integrated HMI solution in panel-mount format is equipped with the latest processor generation (NXP i.MX 8M Mini ARM Cortex) and can be used both for user interaction in the actual end application and for central control.
The TANARO board is the result of a joint product development between Garz & Fricke and processor module specialist Keith & Koep, which has been part of the Garz & Fricke Group since the beginning of 2020.
Special HMI - Displays

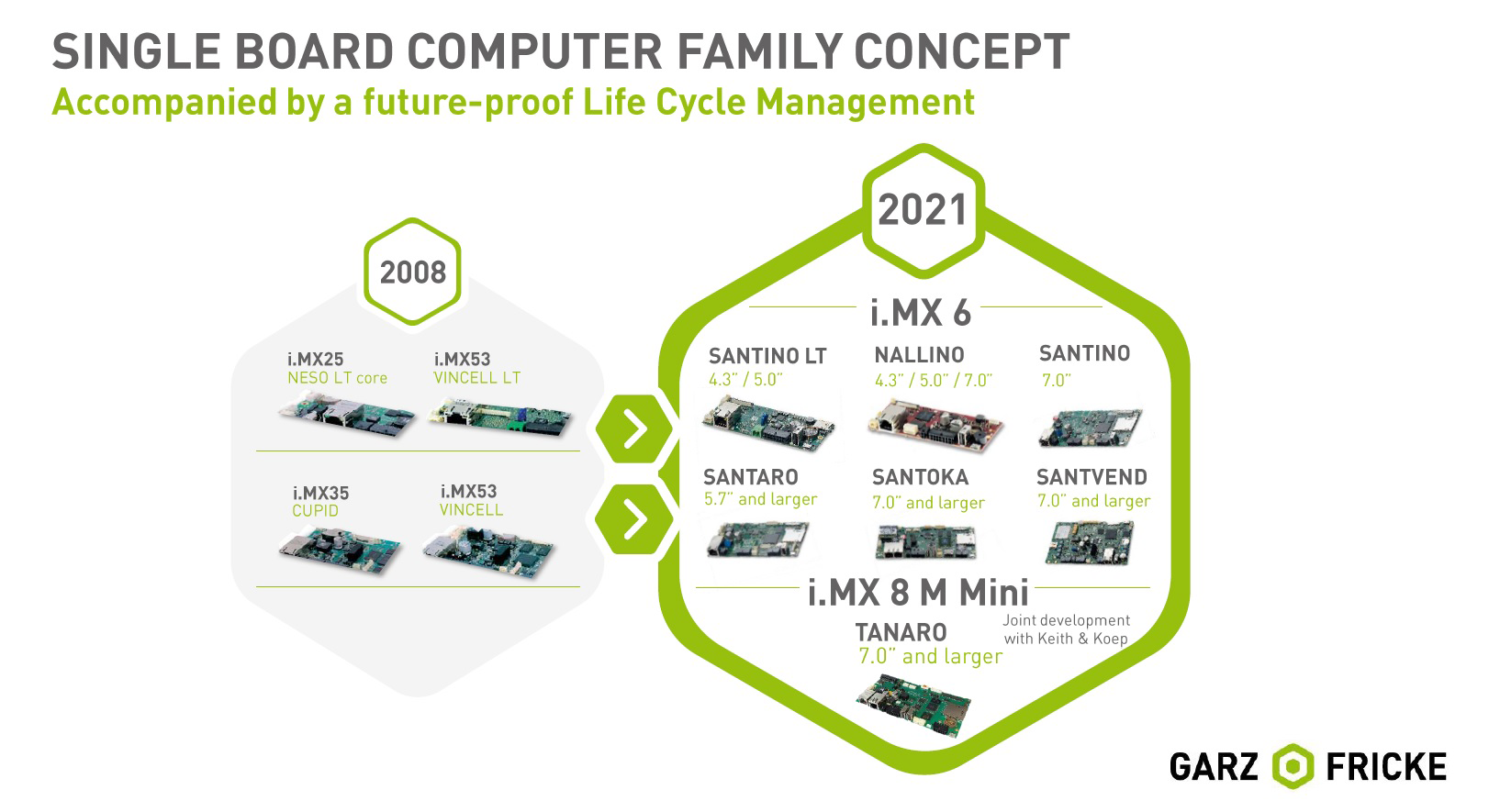

The new HMI is based on the TANARO board, the latest member of the SBC family concept from Garz & Fricke.

Low power consumption
even at high performance

The seven-inch Panel Mount HMI with its robust design can be easily integrated into a product. Equipped with the latest SBC model from the Garz & Fricke Group, it features the modern i.MX 8M Mini processor generation from NXP. Manufactured in the modern 14 nm FinFET process, this processor offers high performance with low power consumption and low operating temperature – even at extremely high-performance requirements. The display features high resolution with 1024x600 pixel and a capacitive touchscreen for advanced user interaction.

Many interfaces

Multiple connectivity options such as RS232, RS485, CAN multiple USBs as well as 1 GB Ethernet and integrated Wifi/BT make the TANARO 7.0 BX PCT a future-proof HMI solution and perfect operating unit. The integrated MIPI-CSI camera interface also offers the option to integrate camera solutions.
This also allows applications such as image processing and evaluation to be implemented without any problems.

Perfect for IoT devices

The TANARO 7.0 BX PCT is a general-purpose HMI for use in various professional products such as IoT devices. It is designed for use in rough environments with particularly high requirements and is perfectly suited for user interaction as well as for control tasks. Like all Garz & Fricke HMIs, the TANARO 7.0 BX PCT can be customized to provide an optimal solution for any application. ds
