Valve connectors DT and Superseal with double cable outlet

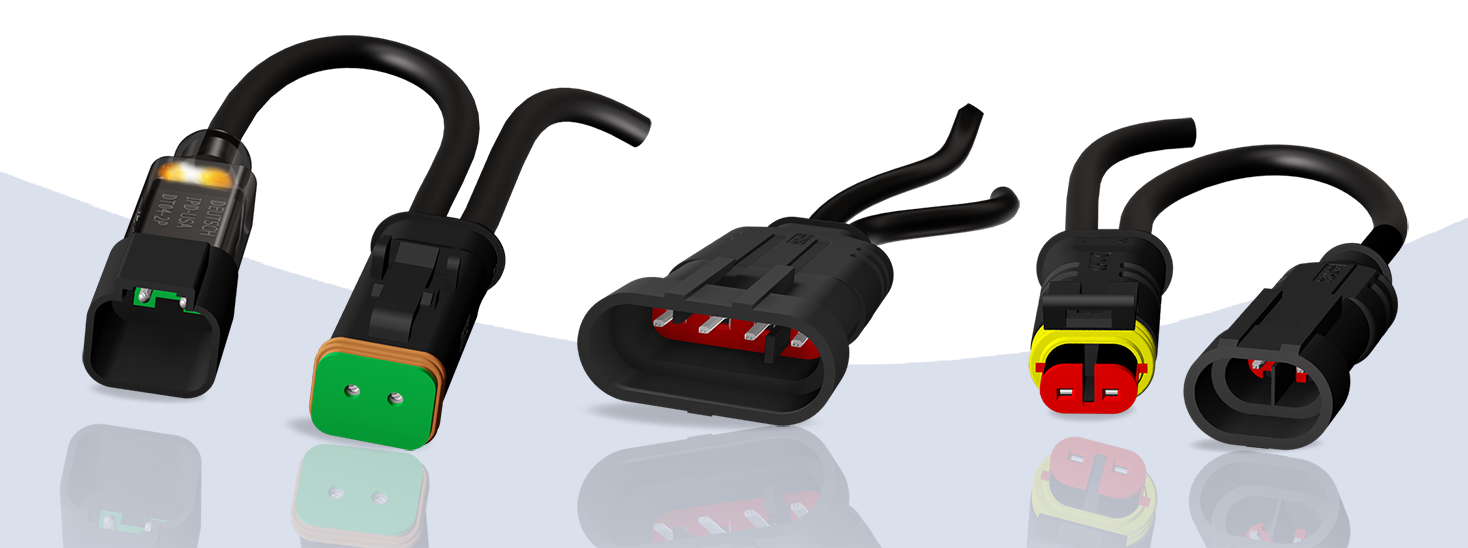

The new versions of the CONEC valve connectors are mostly used as Y-distributors for the distribution of signals and power, with variable cable lengths and the possibility to assemble different connectors at the cable ends according to customer requirements.

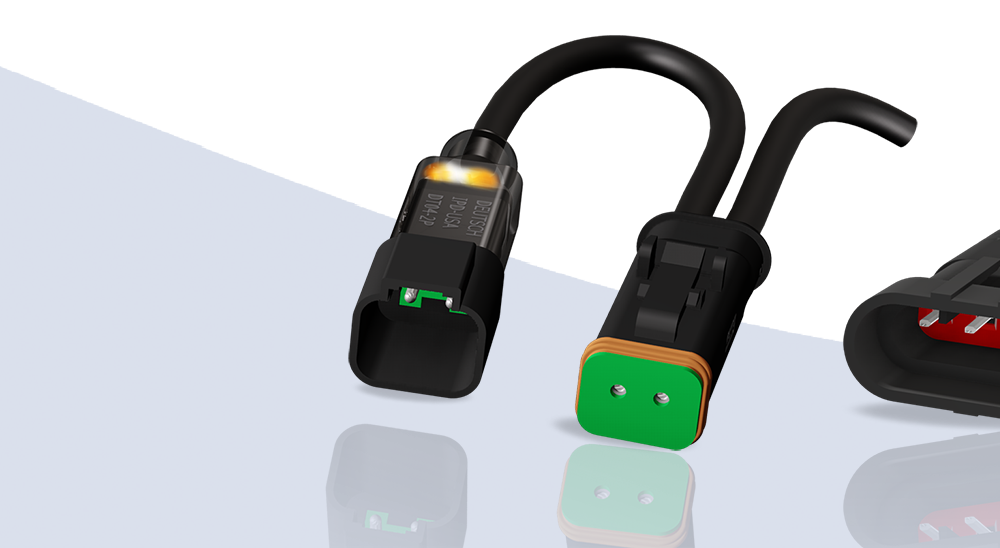

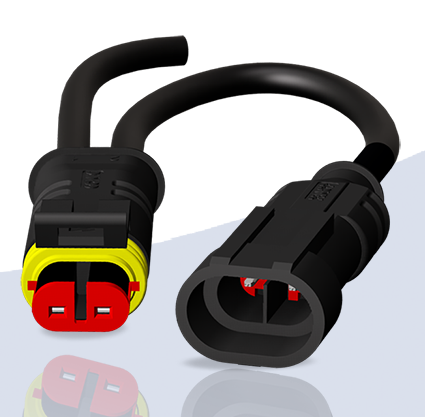

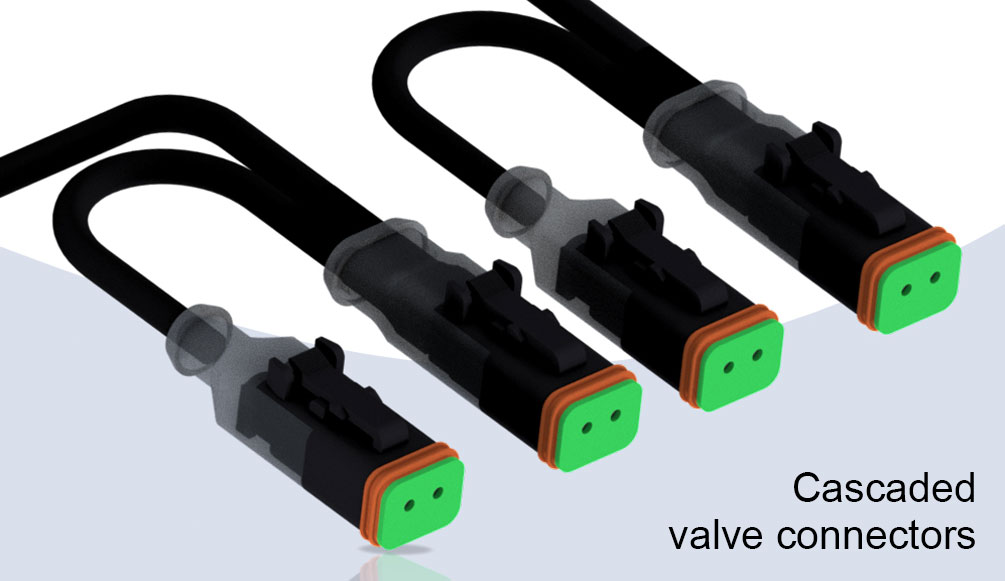

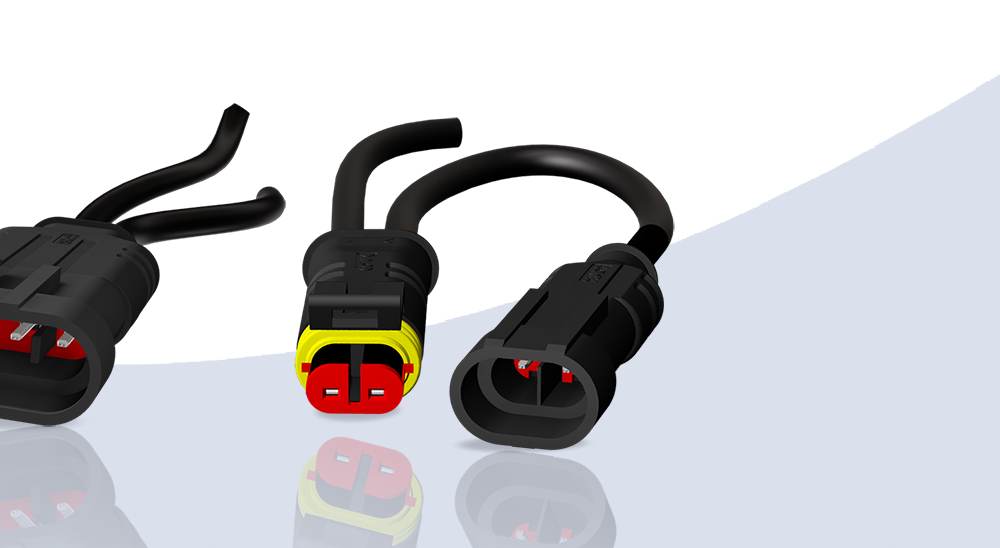

Versions with double outlet are also often used in Daisy-Chain applications with multiple cascaded connectors, e.g. to control valves via a CAN-Bus. The option of distributing the signals and power in the connector to two additional ones, offers possibilities for making systems more compact and thus for saving installation space. The version with double outlet is offered with a PUR cable and a strand cross-section of 0.75 mm² in 1 m length. The double outlet option is currently implemented for the 2-, 4- and 6-pos. DT (socket and plug contact version), as well as the 2- and 3- pos. socket contact version and the 3- and 4-pos. plug contact version Superseal. In addition to the standard parts with open cable end, various combinations are possible upon request. Simple Y-connecting cables with connectors of the same type, as well as combinations with different connector types are possible.
Connector technology

Protection classes IP67 / IP69K

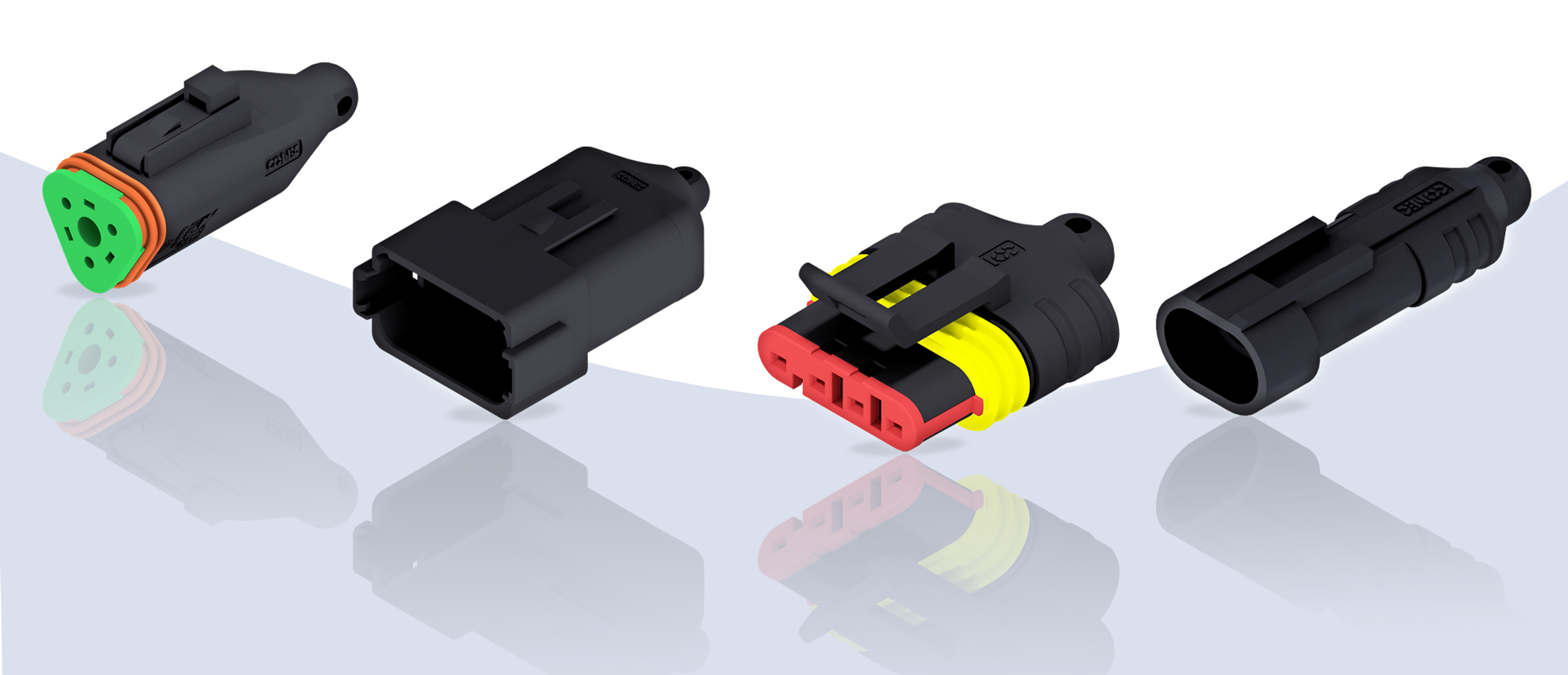

In addition to the versions with double outlet, CONEC has also implemented termination caps versions for the DT and Superseal series. The termination caps not only protect unused connectors from contamination. When using these protective caps, the protection class according to IP67 / IP69K is also met.
The hole at the end of the caps also offers the possibility of attaching a rope to make the caps captive. As standard, the caps are designed without contacts and additional circuit.
As an option, it is possible to integrate resistors and short-circuit bridges into the end caps. This way, for example, termination plugs for CAN-Bus systems, and also connectors for coding can be realised. The application possibilities are very diverse. Existing mounting options which are plugged to the connector housing, can still be used for the double outlet and termination cap versions. ds
