600 W power supplies for industrial and medical applications

The CUS600M power supplies from TDK-Lambda have an efficiency of up to 96 percent

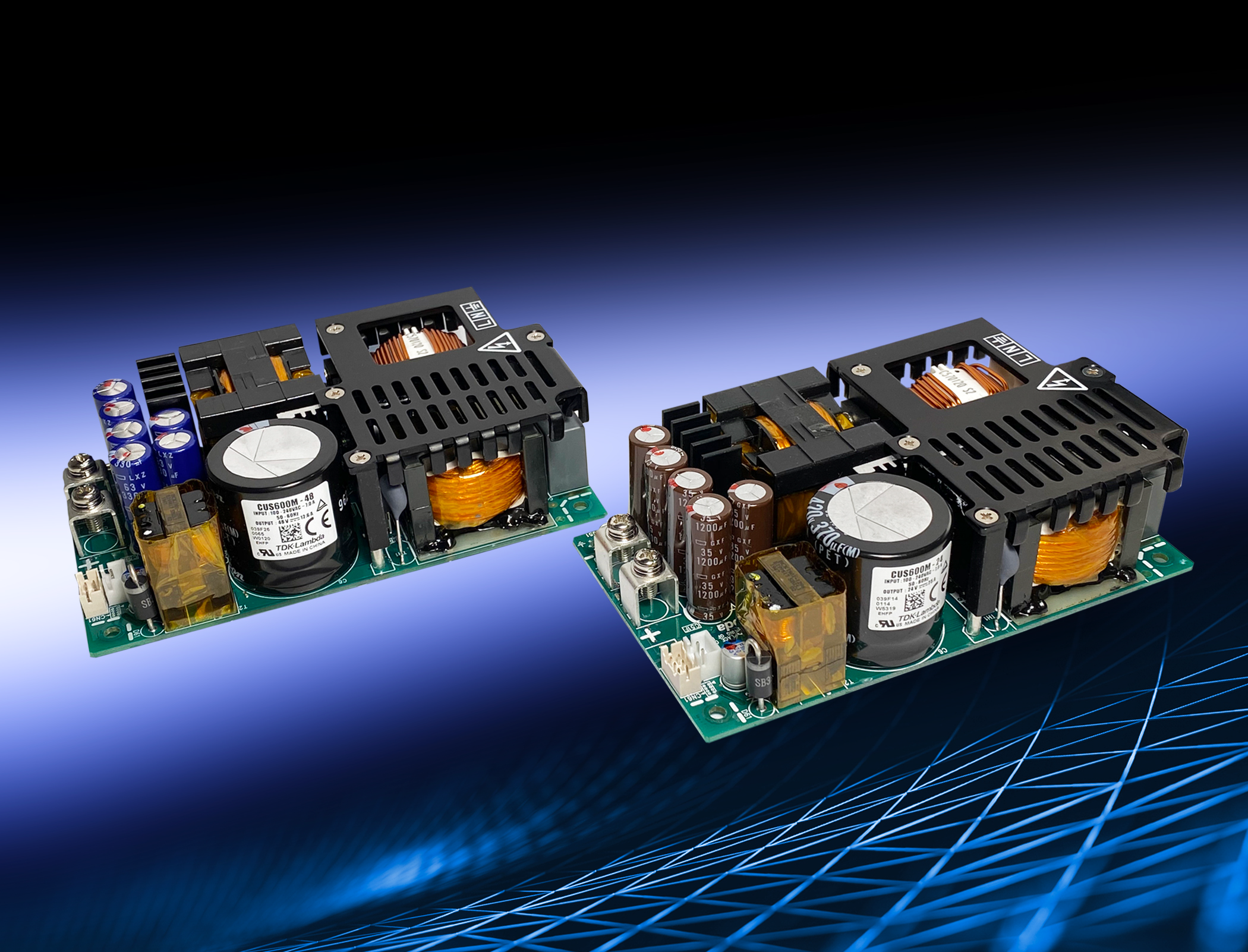

The versatile 3-inch x 5-inch footprint CUS600M AC-DC power supply is ideal for cost sensitive applications requiring a compact, low-profile package and high reliability. It is capable of providing 600 W with an integral fan or system airflow.
It is capable of providing 600 W with an integral fan (/EF option) or system airflow. If audible fan noise cannot be tolerated, the product will provide 400 W convection cooled and yet still deliver 600 W peak power for up to 10 seconds, allowing support for occasional peak demands including motors and capacitor charging.

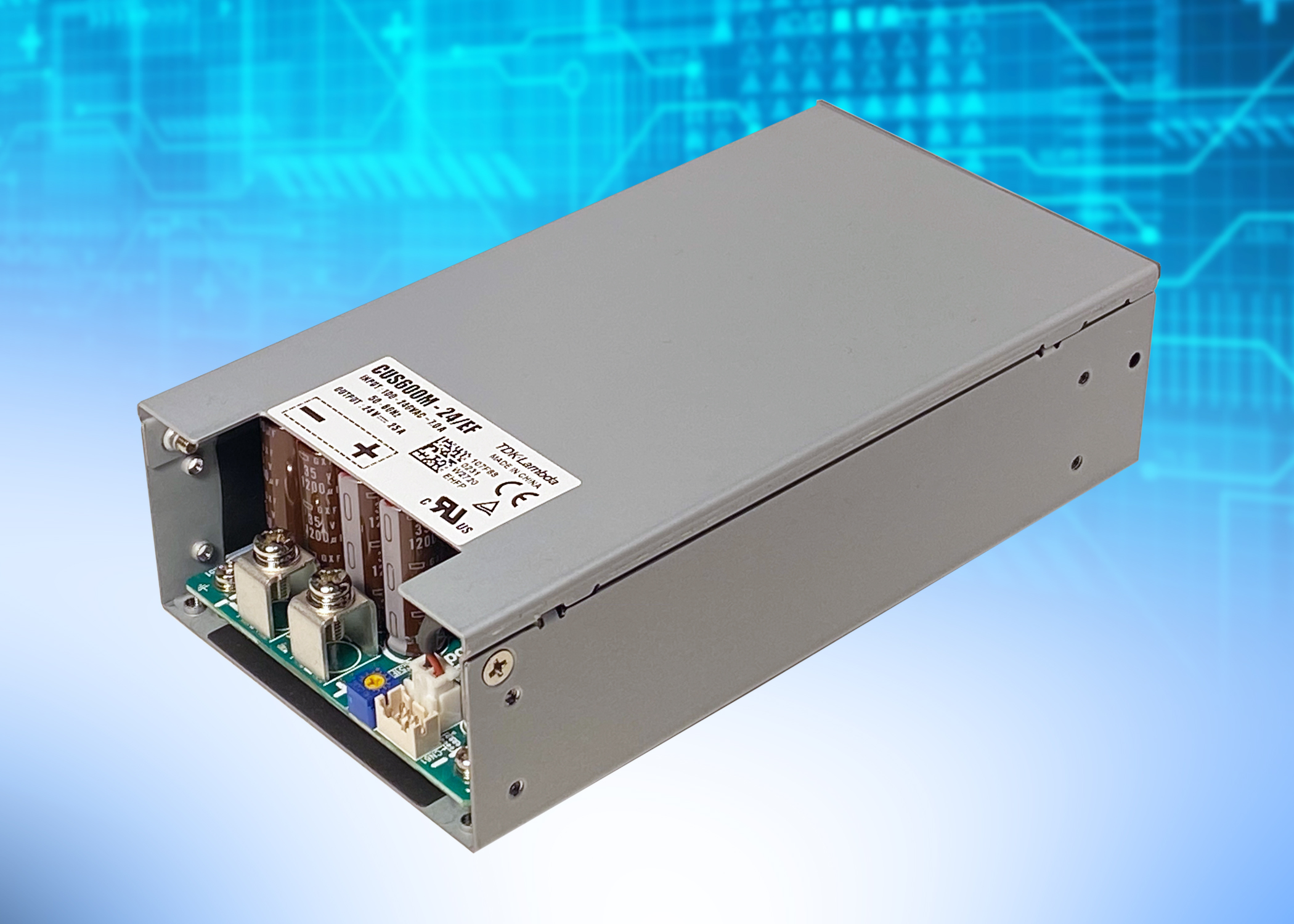

Version in closed housing
The series accepts a wide range 85 to 265 Vac input and is available with a choice of 12, 19, 24, 28, 32, 36 or 48 V outputs. The CUS600M is certified to both the IEC 60601-1 (medical) and IEC 62388-1 (electrical and electronic equipment for audio, video, information and communication technology) for use in medical devices and industrial equipment. They can be operated in Class I systems requiring an earth ground connection, or Class II systems in home healthcare where the use of an earth ground may be restricted.

Low leakage and touch current

The input to output isolation is 4,000Vac (2 x MoPP), input to ground isolation is 2,000 Vac (1 x MoPP) and the output to ground isolation 1,500 Vac (1 x MoPP) for suitability in B and BF rated medical equipment.
The leakage current is less than 200 μA and the touch current less than 100 μA. The maximum operating, transportation and storage altitude is 5,000 m.

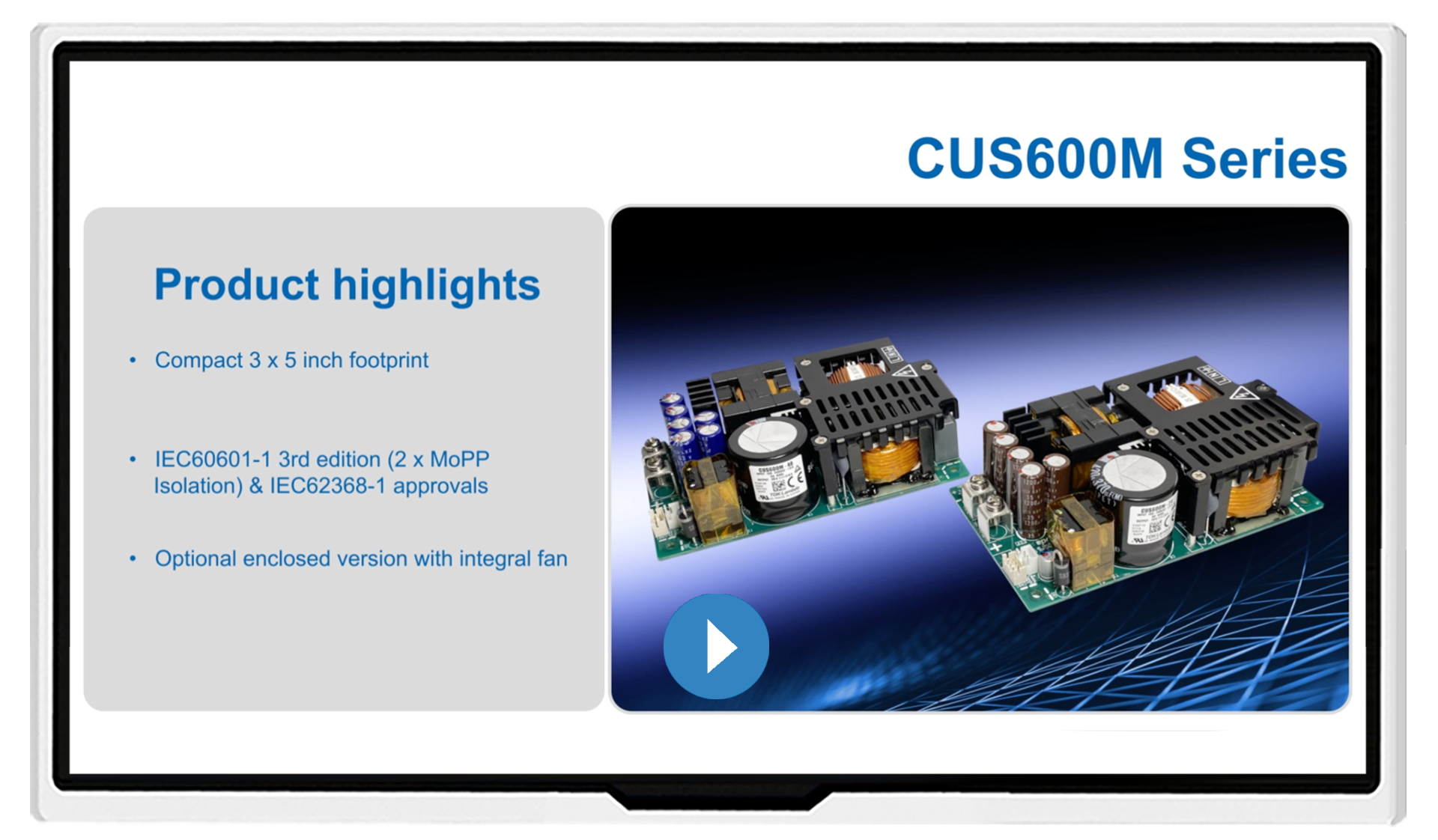

Video: CUS600M 3 x 5” 600W AC-DC Power Supplies
