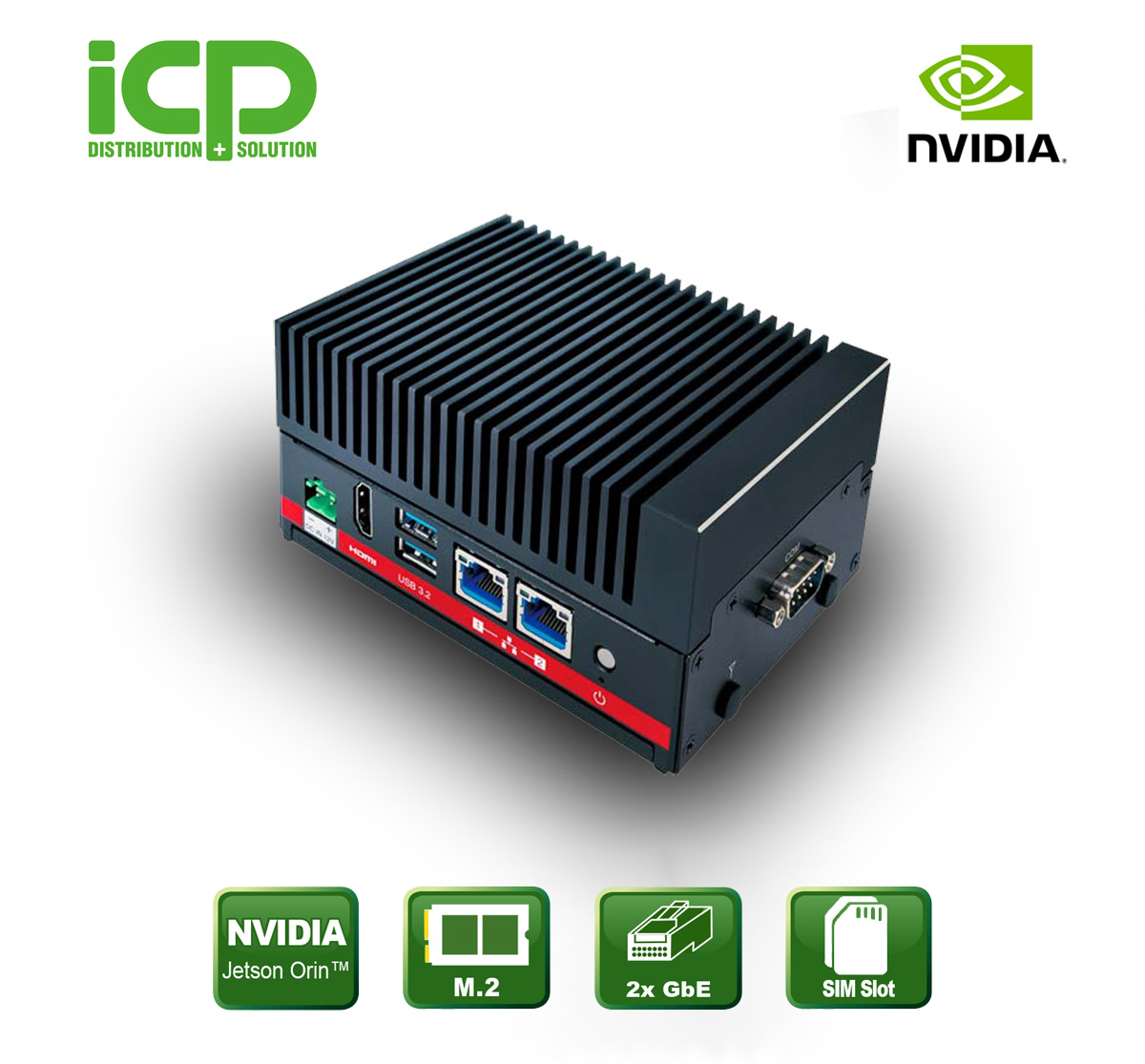

Four different variants with different computing power and power consumption are available.
The embedded PC is available with NVIDIA®
Jetson Orin™ Nano 4GB module (7 to 10 W), with NVIDIA®
Jetson Orin™ Nano 8 GB module (7 to 15 W),
or with NVIDIA® Jetson Orin™
NX 8 GB module (10 to 20 W) or with NVIDIA®
Jetson Orin™ NX 16 GB module (10 to 25 W).
Both Orin
™ Nano versions have a maximum CPU frequency of 1.5 GHz and a maximum GPU frequency of 625 MHz.
The Orin
™ NX models each offer a maximum CPU frequency
of 2.0 GHz. The maximum GPU frequency is 765 MHz for the 8 GB variant and 918 MHz for the

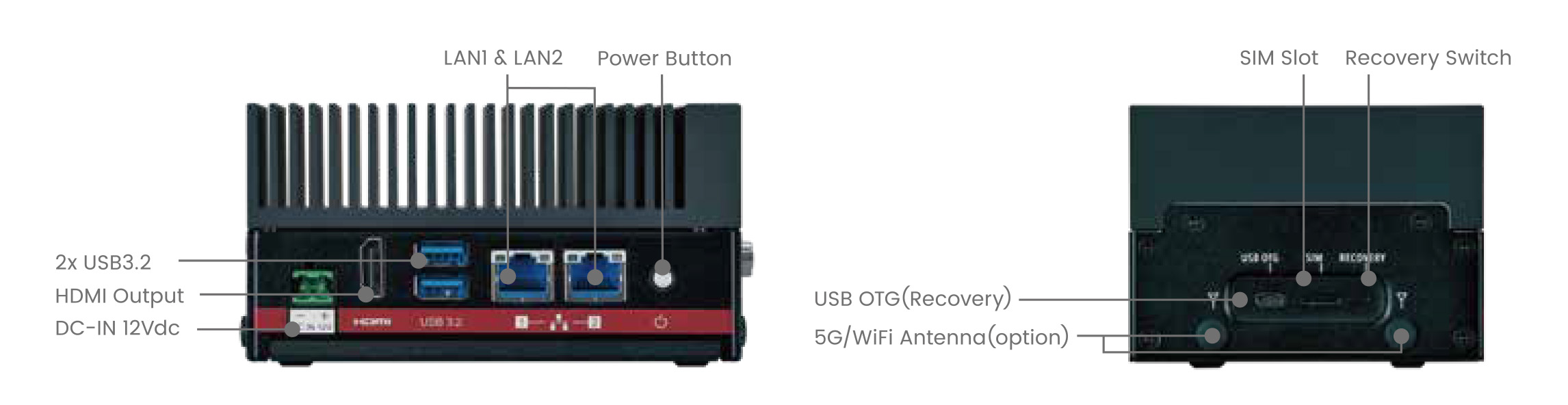

16 GB variant. An M.2 2280 M-Key slot is available for mass storage, and two GbE LAN ports
provide fast data transfer.
Two USB 3.2 ports and an HDMI port are located on the front of the case.
For expansions of 5G/LTE or WiFi modules, an M.2 3042/3052 B-Key and an
M.2 2230 E-Key slot are available. The case itself has a compact size of only 90 x 125 x 65 mm. The
MA1 can be operated with a voltage input of 12 V at temperatures from -25 °C to 60 °C.
