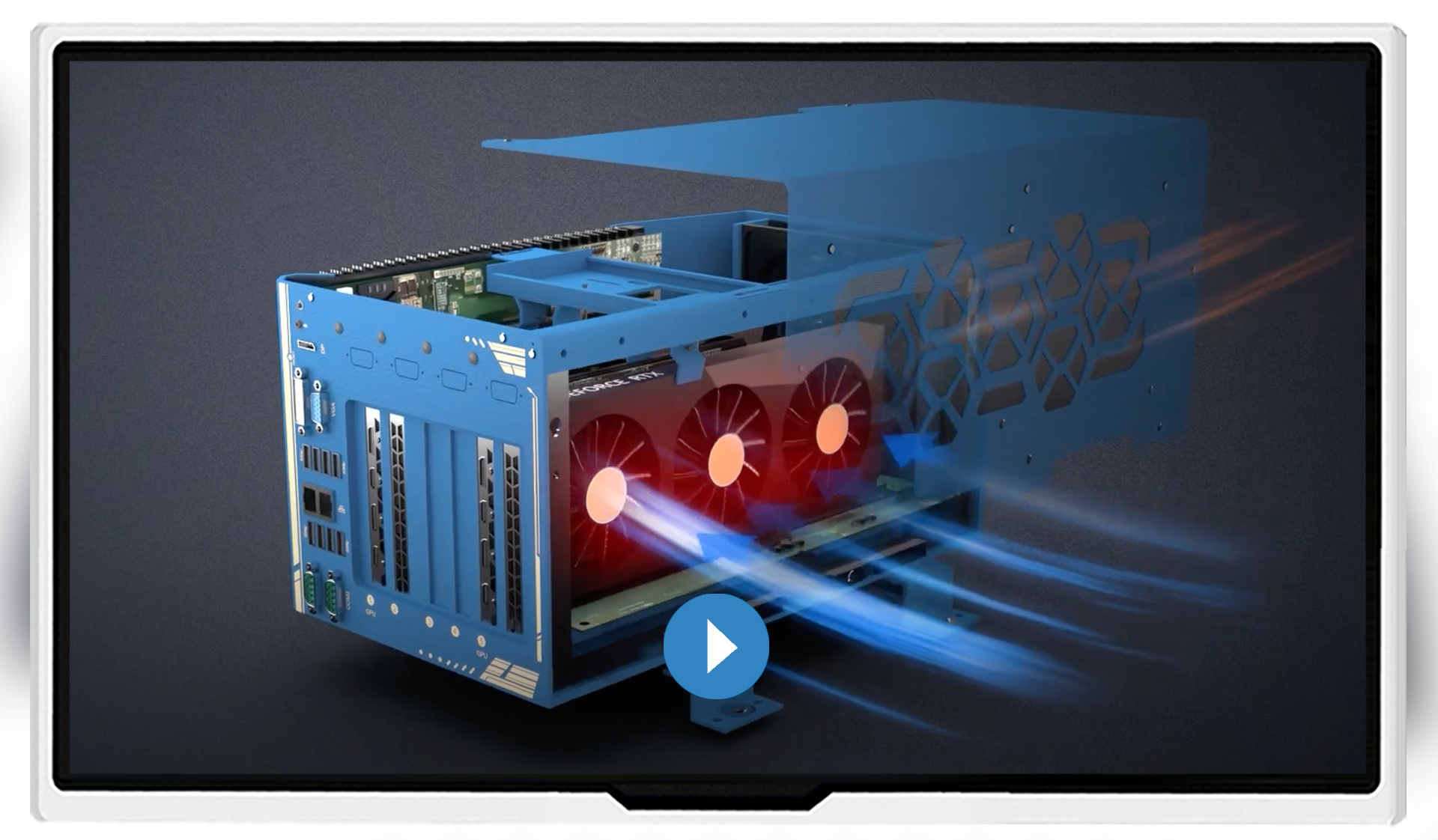

Video: Thriving At The Edge – A New Generation of Industrial Computers
With a thermal operating capability of up to 60 °C, patented GPU brackets,
and a wide range of 8–48 V DC input power with ignition power control, these
are state-of-the-art industrial edge AI platform systems that can advance
autonomous vehicle control, improve visual inspection, and enhance intelligent video data analysis.
Powered by an Intel® Core™
13th or 12th generation CPU with up to 24 cores and 32 threads, these platforms offer a
twofold performance increase compared to earlier Intel®
10th and 11th generation systems. To accommodate and optimize space for

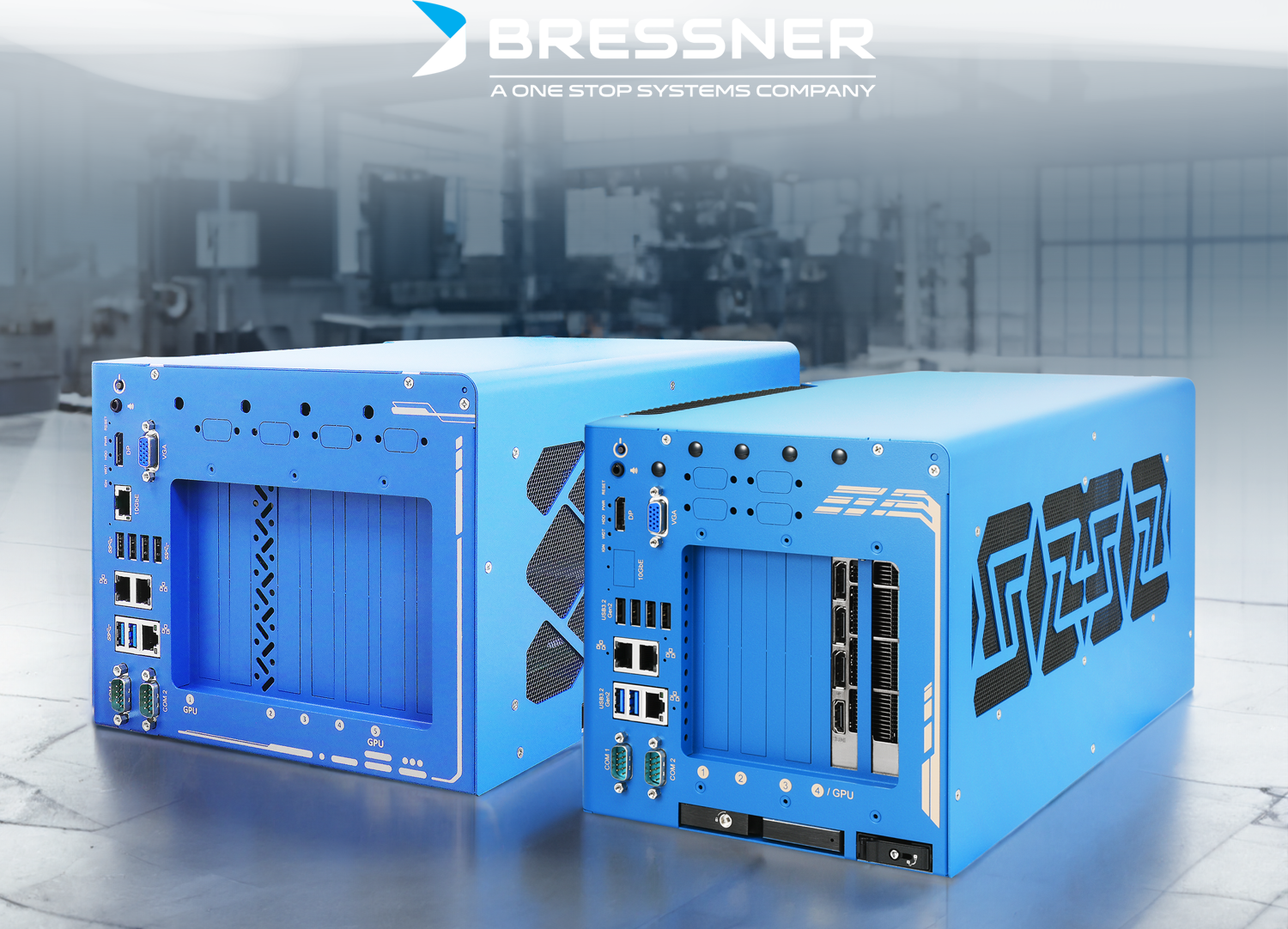

GPU cards, both Nuvo-10208GC and Nuvo-10108GC are equipped with brand-new, patented
GPU locking brackets. These brackets are designed to secure the graphics card to the chassis,
ensuring reliable use for both on-road and off-road applications. The systems also include ignition
power control to shield them from electrical instability during vehicle power on and off, making them
ideal for in-vehicle use.
Expansion options
The platforms offer a variety of inputs and outputs with options for ultra-fast 10G Ethernet.
In terms of expansion, both systems offer three additional PCIe slots each for GMSL2
or industrial camera frame grabber cards, as well as various expansion cards. For internal
expansion, there are two full-size Mini PCI Express slots for CAN bus, COM, and Wi-Fi expansions,
as well as an M.2 B-key slot for mobile connectivity with 4G LTE and 5G NR modules.
